LiFePO4 BATTERY
Home ESS refers to the storage of electricity locally by household energy storage equipmentfor later use, ESS consists of energy storage batteries inverters and other components.We use brand new A-grade LiFePo4 battery,equipped with an intelligent batterymanagement system for charging and discharging cycles,The inverter converts DC ener gytoAC energy to meet the requirements for household electricity .Normally this product is installedin combination with PV system to provide green electricity to household users, reduceenergy consumption, and reduce negative impacts on the environment,it's widely used inremote areas or areas with unstable power supply, to provide reliable, stable, and cost.effective energy supply.
Product Advantage:
1. Superior safety and longer cycle life
2. Higher energy density and Lighter weight
3. Super quick charge and low self-discharge
Product Specification:
| Model | SCLFP-12.8V-30 | SCLFP-12.8V-50 | SCLFP-12.8V-100E | SCLFP-12.8V-100 | SCLFP-12.8V-150 |
| Nominal Voltage | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V |
| Rated Capacity | 384Wh(30Ah) | 640Wh(50Ah) | 1280Wh(100Ah) | 1280Wh(100Ah) | 1920Wh(150Ah) |
| Cell Combination Structure | 4S2P | 4S1P | 4S4P | 4S1P | 4S1P |
| Discharge Current | 30A | 50A | 80A | 100A | 100A |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Discharge End Voltage | 10V | 10V | 10V | 10V | 10V |
| Standard Charge Voltage | 14.6V | 14.6V | 14.6V | 14.6V | 14.6V |
| Float Voltage | 13.8V | 13.8V | 13.8V | 13.8V | 13.8V |
| Standard Charge Current | 15A | 25A | 40A | 50A | 50A |
| Maximum Continuous ChargeCurrent | 30A | 50A | 80A | 100A | 100A |
| Standard Discharge Current | 15A | 25A | 40A | 50A | 50A |
| Maximum Continuous DischargeCurrent | 30A | 50A | 80A | 100A | 100A |
| Peak Current | 33A，10Sec | 55A，10Sec | 110A，10Sec | 110A，10Sec | 110A，10Sec |
| Charge Operating Temperature | 0℃ -50℃ | 0℃ -50℃ | 0℃ -50℃ | 0℃ -50℃ | 0℃ -50℃ |
| Discharge Operating Temperature | -20℃～ 60℃ | -20℃～ 60℃ | -20℃～ 60℃ | -20℃～ 60℃ | -20℃～ 60℃ |
| Dimension | 22.3*9.5*17.5cm | 22.8*13.8*20.8cm | 33*17.2*21.5cm | 33*17.2*21.5cm | 52.2*24*21.8cm |
| Model | SCLFP-12.8V-200 | SCLFP-12.8V-300 | SCLFP-25.6V-100 | SCLFP-25.6V-200 |
| Nominal Voltage | 12.8V | 12.8V | 25.6V | 25.6V |
| Rated Capacity | 2560Wh(200Ah) | 3840Wh(300Ah) | 2560Wh(100Ah) | 5120Wh(200Ah) |
| Cell Combination Structure | 4S2P | 4S1P | 8S1P | 8S1P |
| Discharge Current | 100A | 200A | 100A | 100A |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Discharge End Voltage | 10V | 10V | 20V | 20V |
| Standard Charge Voltage | 14.6V | 14.6V | 29.2V | 29.2V |
| Float Voltage | 13.8V | 13.8V | 27.6V | 27.6V |
| Standard Charge Current | 50A | 100A | 50A | 50A |
| Maximum Continuous ChargeCurrent | 100A | 200A | 100A | 100A |
| Standard Discharge Current | 50A | 100A | 50A | 50A |
| Maximum Continuous DischargeCurrent | 100A | 200A | 100A | 100A |
| Peak Current | 110A，10Sec | 220A，10Sec | 110A，10Sec | 110A，10Sec |
| Charge Operating Temperature | 0℃ -50℃ | 0℃ -50℃ | 0℃ -50℃ | 0℃ -50℃ |
| Discharge Operating Temperature | -20℃～ 60℃ | -20℃～ 60℃ | -20℃～ 60℃ | -20℃～ 60℃ |
| Dimension | 52.2*24*21.8cm | 52.2*26.8*22cm | 52.2*24*21.8cm | 52.2*24*21.8cm |

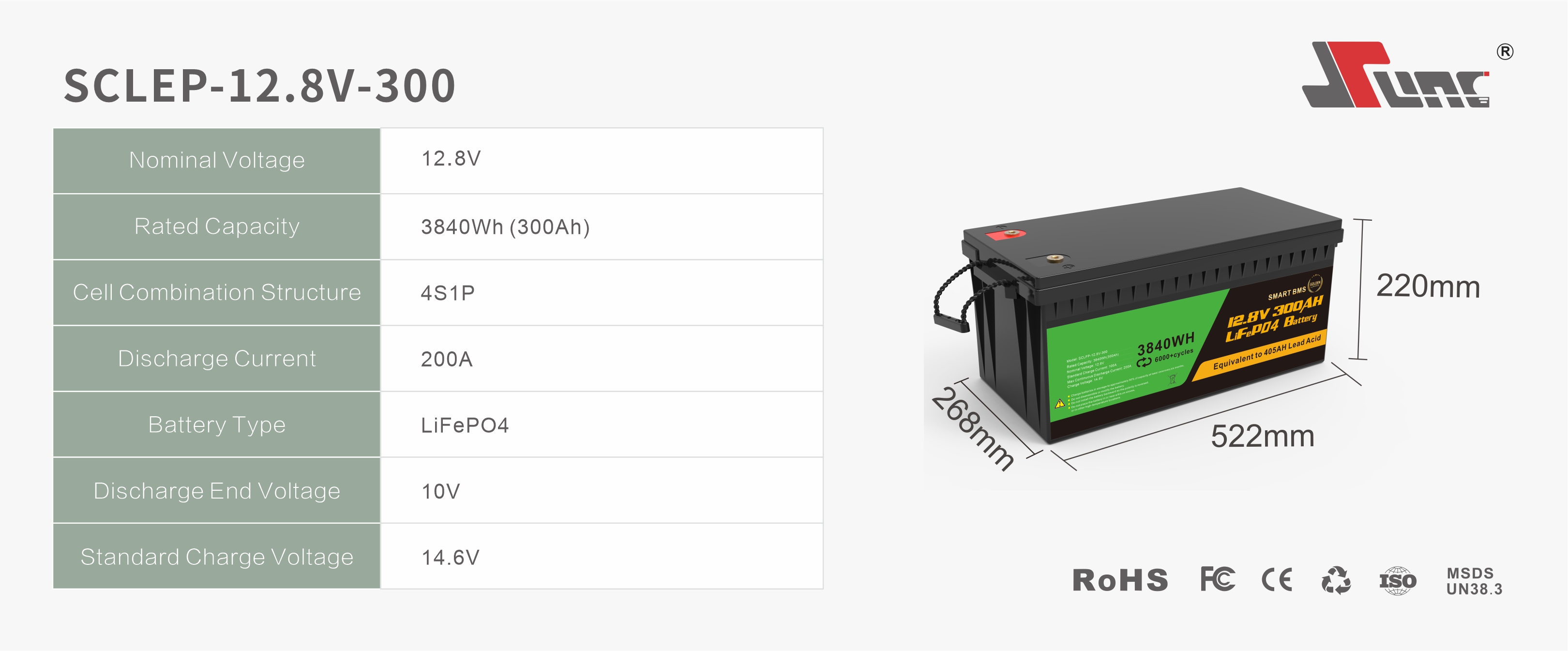

Product Dimension:
