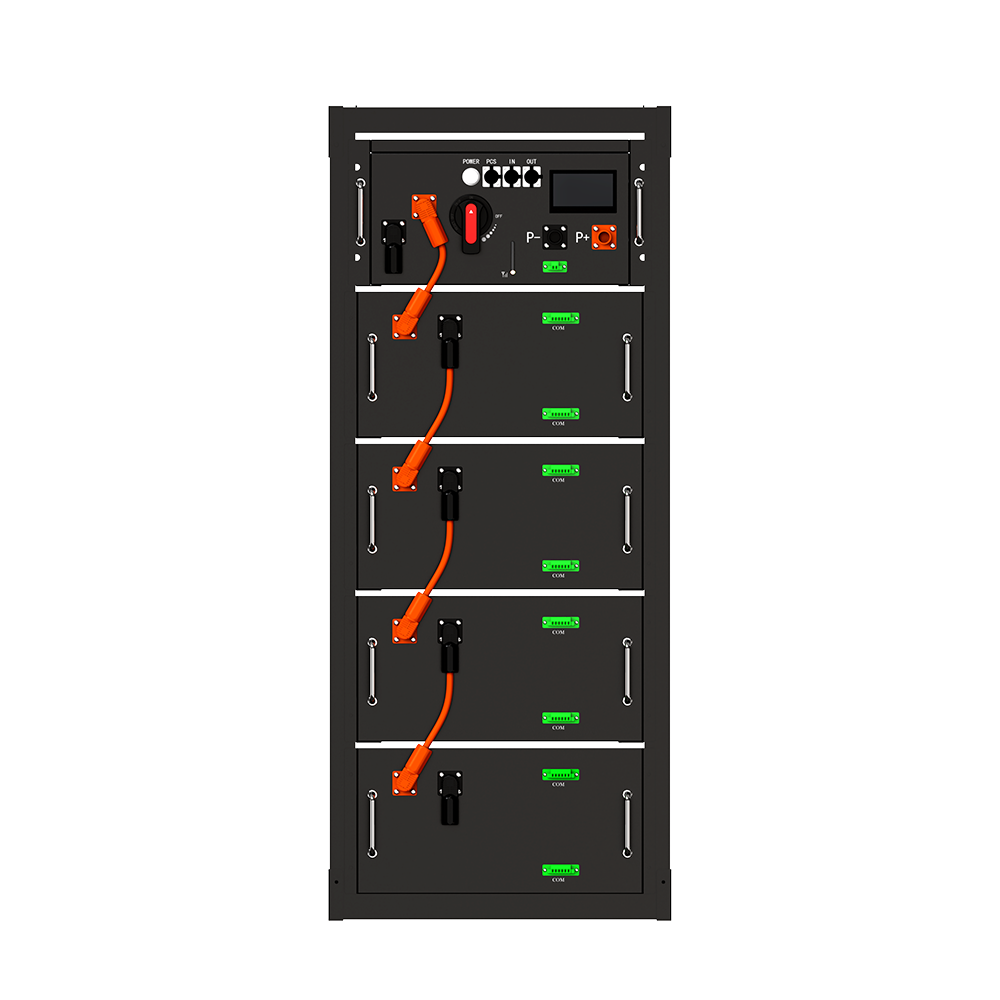

SCRA-51.2-200(HV)

SCRA-51.2-200(HV)


* Battery Capacity: 200Ah

* Battery Voltage: 51.2V

* Battery Dimension: 580*540*1370mm



Description

RACK MOUNTED BATTERY


Home ESS refers to the storage of electricity locally by household energy storage equipment for later use, ESS consists of energy storage batteries inverters and other components.We use brand new A grade LiFePo4 battery, equipped with an intdl igent battery management system for charging and discharging cycles.The inverter converts DC energy to AC energy to meet the requirements for household electricity .Normally this product is installedin combination with PV system to provide green electricity to household users, reduceenergy consumption, and reduce negative impacts on the environment, it's widely used inremote areas or areas with unstable power supply, to provide reliable, stable, and cost. effective energy supply



Product Advantage:

Voltage Range From 200V-400V;

Capaicty from 41KWh to 82KWh



Product Specification:


BatteryModel
SCRA-51.2-200(HV)
Chemical batteryLiFePO4
Module capacity (Ah)10KWh (ACTUAL 11KWh)
Module rated voltage (V)51.2V
Module capacity (Ah)200Ah (ACTUAL 220Ah)

Number of battery modules in series

(optional)

4 (Min)6 (Standard Us Cluster)8 (Standard EU Cluster)
System rated voltage (V)204.8307.2409.6
System operating voltage (V)172.8-233.6259.2-350.4345.6-467.2
System energy (KWh)40KWh(ACTUAL 44KWh)60KWh(ACTUAL 66KWh)80KWh(ACTUAL 88KWh)
Charge/discharge current (A)Recommend100100100
Max120120120
Peak ischarge150150150
Working temperature (℃ )
Charge:0~55/Discharge:-20~55
Status Indicator
CAN2.0/RS485
Humidity
5~85%RH
Altitude
≤2000m
Protection of Degree
ID20
Installation location
rack mounted
Storage temperature(℃ )
-10℃-60℃
Recommended dDepth of Discharge
95%
Cycle life
25+2°C, 0.5C/0.5C, EOL80%≥6000
Certifi cation
UN38.3 CE. IEC62619
Dimensions Wx D x H(mm)
580*540*1370580*540*1840580*548*2318

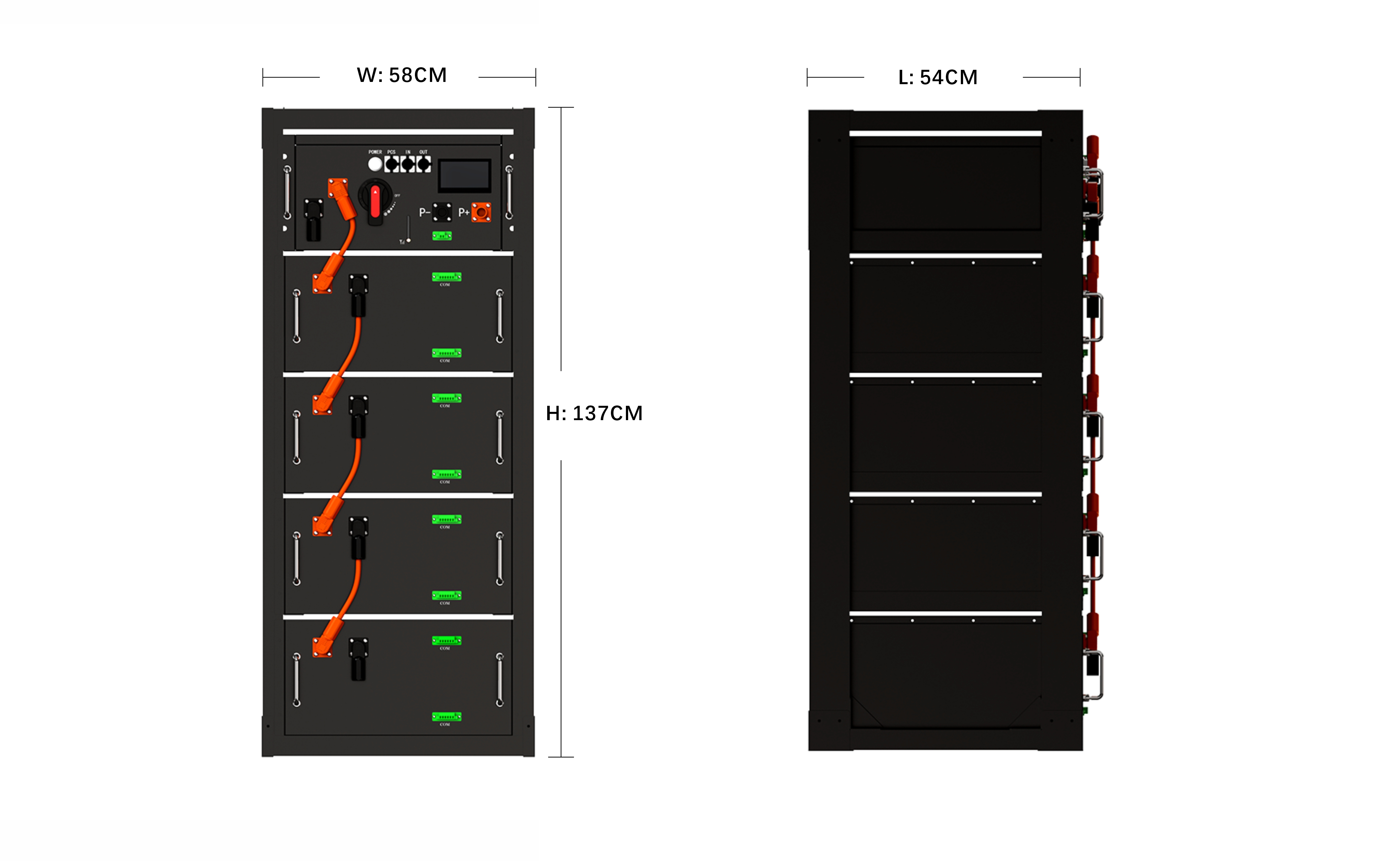

Product Dimension:
